Dot Product: Formula, Angle & Projection

Algebraic Definition

Nothing so far measures how two vectors relate to each other.

Length measures one vector at a time. Adding and scaling make new vectors. But no operation yet answers the obvious question about two arrows: do they point the same way, at right angles, or against each other — and by how much? A single number that answered it would be worth a great deal.

Two arrows from the origin,

(3, 1)

and

(1, 2)

, with the angle between them marked.

The definition

The dot product of two vectors

\mathbf{a} = (a_1, \ldots, a_n)

and

\mathbf{b} = (b_1, \ldots, b_n)

in

\mathbb{R}^n

is the scalar obtained by multiplying corresponding components and summing the results:

Dot Product (Algebraic Form)

\mathbf{a} \cdot \mathbf{b} = a_1b_1 + a_2b_2 + \cdots + a_nb_n = \sum_{i=1}^{n} a_ib_i

Learn more about this formula: Dot Product (Algebraic Form) →

component	a	b	product
first	3	1	3
second	1	2	2
sum			a · b = 5

For

\mathbf{a} = (3, 1)

and

\mathbf{b} = (1, 2)

: multiply down each row, then add the products —

3 + 2 = 5

.

Browse all linear algebra formulas →

A dot product is a number, not a vector.

The dot product differs fundamentally from vector addition and scalar multiplication. Those operations take vectors and produce vectors. The dot product takes two vectors and collapses them into a single number, discarding the directional structure in favor of a measurement of alignment.

Pitfall: Leaving the products as a vector

Multiplying the components of

(3, 4)

and

(1, -2)

and writing the answer as

(3, -8)

stops halfway. The products are added:

3 + (-8) = -5

, a single number.

The notation uses a centered dot between the two vectors. Other names for the same operation are the inner product and the scalar product — the latter emphasizing that the output is a scalar, not a vector.

On numbers, the rule is the same in every dimension.

This definition works in any dimension. In

\mathbb{R}^2

, the dot product of

(3, 4)

and

(1, -2)

is

3(1) + 4(-2) = -5

. In

\mathbb{R}^5

, the same rule applies with five terms instead of two. The computation is mechanical, but the meaning it carries — revealed by the geometric definition — is what makes the dot product central to the rest of linear algebra.

a	b	products	a · b
(3, 1)	(1, 2)	3 + 2	5
(3, 4)	(1, −2)	3 + (−8)	−5
(1, 2, 3)	(4, 0, −1)	4 + 0 + (−3)	1
(3, 1)	(3, 1)	9 + 1	10

Two pairs give positive numbers, one gives a negative number, and a vector dotted with itself gives

10

. What those signs and sizes mean is the next thing to check.

Products formed, then summed to one number

Each pair of matching components was multiplied and the products were then collapsed into a single running total. The output is a scalar, not a vector, and that one fact is what separates this product from every other operation on this page. Follow the accumulation term by term on the inner product visualizer.

Everything later on this page — angles, orthogonality, projections — is read off that single number.

The definition keeps the promises the opening asked for.

A number that measures how vectors relate should give back length, track the angle, and vanish at right angles. Test all three on the running example.

promise	check on a = (3, 1), b = (1, 2)	kept?
a · a is the squared length	a · a = 10, and ‖a‖ = √10	yes
it reflects the angle	5 = √10 · √5 · cos 45°, since √50 · 0.707… = 5	yes
perpendicular gives 0	(3, 1) · (−1, 3) = −3 + 3 = 0	yes

The same rule against

\mathbf{a} = (3, 1)

as

\mathbf{b}

turns:

5

at

45°

,

0

at a right angle (the square), and negative once

\mathbf{b}

points away.

The definition says how to compute; why it measures angle needs a second, geometric description.

Nothing in "multiply and add" mentions angles, yet the checks above came out right. The reason is the geometric definition in the next section,

\mathbf{a} \cdot \mathbf{b} = \|\mathbf{a}\|\|\mathbf{b}\| \cos\theta

, which agrees with this one in every case. The algebraic rule is for computing; the geometric one is for meaning.

To compute the dot product of two specific vectors, use the vector calculator.

The rest of the page gives the notation, the geometric definition and why the two agree, the algebraic properties, the angle between vectors, orthogonality, the Cauchy–Schwarz inequality, and projections.

DownloadPNG2×PDF

1entries

Dot product · as a matrix product

Two vectors, one number

Written as a 1×2 row times a 2×1 column, the dot product of $(3, 4)$ and $(1, -2)$ is a matrix product with a single entry: $3(1) + 4(-2) = -5$ .

§ 1

A1×2·B2×1→AB1×1The inner pair matches, then vanishes. Only the outer numbers survive into the result.

34

A 1×2

·

1−2

B 2×1

=

−5

AB 1×1

How that entry was formed

c11=3·1+4·−2=3−8=−5

Row 1 of A pairs off against column 1 of B, term by term, and the 2 products are summed. The shared length 2 is the inner dimension — it is consumed by the sum and does not appear in the answer.

Multiplications: 2m · n · p — one per term of every entry
Additions: 1m(n−1)p — one fewer than the terms
Reverse product: 2×2defined here, and a different size

Why the result is a scalar

The products are added, not kept. $(3, -8)$ is a stop halfway; the dot product is the single number $-5$ , which is why it is also called the scalar product.

Two vectors, one number·/linear-algebra/vectors/dot-productLearn Math Class

Dot Product Notation

Notation

Dot Product Notation

The one dot that is never optional, the matrix spelling of the same number, and how to read a line that mixes every kind of bar.

Bold vectors and components — vector notation;

\|\cdot\|

— norm notation;

\Sigma

— sequence notation.

\mathbf{a} \cdot \mathbf{b}

a dot b

Between two vectors the centered dot is the operation — juxtaposition

\mathbf{a}\mathbf{b}

means nothing here, unlike scalars where

ab

and

a \cdot b

agree. The output is a scalar; the names, per the Algebraic Definition above, are dot, inner, or scalar product.

CasesThree habitats for one glyph: between scalars, optional; in

c \cdot \mathbf{v}

, optional decoration for scalar multiplication; between vectors, load-bearing. Only the last one changes the species of the result.

Also written

\langle \mathbf{a}, \mathbf{b} \rangle

— angle brackets, the general inner product's mark, of which the dot is the

\mathbb{R}^n

special case.

Do not confuse

\mathbf{a} \times \mathbf{b}

— the cross product: different operation, different output species (a vector, and only in

\mathbb{R}^3

). The two multiplication signs of arithmetic become two different operations on vectors.

\mathbf{a}^{T}\mathbf{b}

a transpose b

The matrix spelling of the same number: a row (

1 \times n

) times a column (

n \times 1

) is a

1 \times 1

matrix — the dot product wearing matrix clothes.

CasesStandard wherever vectors are columns by default — advanced texts, statistics, machine learning. The reversed order

\mathbf{a}\mathbf{b}^{T}

is a different object entirely: an

n \times n

matrix, the outer product.

Also written

\mathbf{a}^{\top}\mathbf{b}

, with the sans-serif top glyph;

\mathbf{a}'\mathbf{b}

in econometrics, where the prime means transpose — colliding with every other job the prime holds.

Do not confuseA power. The

T

is a label — transpose — not an exponent; nothing is being raised.

|\mathbf{a} \cdot \mathbf{b}| \leq \|\mathbf{a}\|\,\|\mathbf{b}\|

The absolute value of a dot b is at most the product of the norms

Cauchy–Schwarz as a bar-reading exercise: single bars on the left because

\mathbf{a} \cdot \mathbf{b}

is a scalar — ordinary absolute value — and double bars on the right because norms measure vectors. The bar count tracks the species on every line of this page.

CasesThe geometric form

\|\mathbf{a}\|\|\mathbf{b}\|\cos\theta

reserves

\theta

for the angle between the vectors — the sign verdicts it produces are read off in Sign of the Dot Product below.

Also written

(\mathbf{a} \cdot \mathbf{b})^2 \leq (\mathbf{a} \cdot \mathbf{a})(\mathbf{b} \cdot \mathbf{b})

— the squared form, bar-free, common in proofs.

Do not confuseNorm bars on a scalar. Writing

\|\mathbf{a} \cdot \mathbf{b}\|

is a species error — the operation already collapsed the vectors; only

|\cdot|

applies to what remains.

All linear algebra symbols →↑ Vectors

DownloadPNG2×PDF

Notation · Cheat sheet

Vector Notation at a Glance

The marks from the notation cards across the vector pages: how each is read and what it means. Every group links to the full card on its page.

Vectors

\mathbf{v}, \; \overset{\to}{v}

vector v

Bold in print, an arrow by hand: either marks a vector, not a number.

\overset{\longrightarrow}{AB}

vector A B

The vector from point

A

to point

B

.

\mathbf{i}, \mathbf{j}, \mathbf{k}

the standard basis

Unit vectors along the axes; also

\mathbf{e}_1, \ldots, \mathbf{e}_n

.

Basic operations

(v_1, \ldots, v_n)

v with components v one to v n

The subscript names a slot:

v_2

is the second component, a number.

\mathbb{R}^n

R n, real n-space

All vectors with

n

real components.

Magnitude

\|\mathbf{v}\|

the norm of v

Length; two bars for a vector, one for a number.

\|\mathbf{v}\|_1, \; \|\mathbf{v}\|_\infty

one-norm, infinity-norm

The subscript picks the norm;

\|\mathbf{v}\|_2

is the usual length.

\hat{\mathbf{u}}

u hat

A unit vector:

\|\hat{\mathbf{u}}\| = 1

.

Dot productThis page

\mathbf{a} \cdot \mathbf{b}

a dot b

A number from two vectors;

\mathbf{a}\mathbf{b}

with no dot means nothing.

\mathbf{a}^{T}\mathbf{b}

a transpose b

The same number in matrix form: row times column.

Cross product

\mathbf{a} \times \mathbf{b}

a cross b

A vector from two vectors, in

\mathbb{R}^3

only.

\mathbf{a} \cdot (\mathbf{b} \times \mathbf{c})

a dot, b cross c

The scalar triple product: a signed volume.

Vector properties

\mathbf{a} \parallel \mathbf{b}

a is parallel to b

One is a scalar multiple of the other:

\mathbf{a} = c\mathbf{b}

.

\mathbf{a} \perp \mathbf{b}

a is orthogonal to b

Their dot product is

0

.

\mathbf{0}

the zero vector

Parallel and orthogonal to every vector.

Same marks, different job

|x|

vs

\|\mathbf{v}\|

One pair of bars for a number, two for the length of a vector.

\cdot

and

\times

Between numbers, plain multiplication; between vectors, the dot and cross products.

v_2

vs

\mathbf{v}_2

Plain: the second component of

\mathbf{v}

; bold: the second vector in a list.

Vector symbols table Vectors

Vector Notation at a Glance·/linear-algebra/vectorsLearn Math Class

Geometric Definition

There is a second way to compute the dot product that bypasses components entirely and works directly with lengths and angles. If

\mathbf{a}

and

\mathbf{b}

are both nonzero and

\theta

denotes the angle they form when drawn from a common point, then:

Dot Product (Geometric Form)

\mathbf{a} \cdot \mathbf{b} = \|\mathbf{a}\|\,\|\mathbf{b}\|\cos\theta

Learn more about this formula: Dot Product (Geometric Form) →

Browse all linear algebra formulas →

The right-hand side multiplies the magnitudes of both vectors and adjusts the product by

\cos\theta

. That cosine factor does all the interpretive work: it equals

1

when

\theta = 0

(full alignment), drops to

0

at

\theta = \frac{\pi}{2}

(no alignment at all), and reaches

-1

at

\theta = \pi

(complete opposition).

Why does this agree with the component-wise formula? Place

\mathbf{a}

and

\mathbf{b}

tail to tail and form the triangle completed by

\mathbf{a} - \mathbf{b}

. The law of cosines gives the squared length of the third side:

Geometric Definition

\|\mathbf{a} - \mathbf{b}\|^2 = \|\mathbf{a}\|^2 + \|\mathbf{b}\|^2 - 2\|\mathbf{a}\|\,\|\mathbf{b}\|\cos\theta

Now expand

\|\mathbf{a} - \mathbf{b}\|^2

by writing it as

(\mathbf{a} - \mathbf{b}) \cdot (\mathbf{a} - \mathbf{b})

and distributing. The result is

\|\mathbf{a}\|^2 - 2(\mathbf{a} \cdot \mathbf{b}) + \|\mathbf{b}\|^2

. Setting the two expressions equal and cancelling the squared norms leaves

\mathbf{a} \cdot \mathbf{b} = \|\mathbf{a}\|\,\|\mathbf{b}\|\cos\theta

. The component-based sum of products and the length-angle formula are two faces of a single quantity — one assembled from arithmetic on coordinates, the other encoding geometric information about orientation.

Pitfall: Dropping the middle term

Squaring term by term,

\|\mathbf{a} - \mathbf{b}\|^2 = \|\mathbf{a}\|^2 + \|\mathbf{b}\|^2

, loses

-2(\mathbf{a} \cdot \mathbf{b})

. For

\mathbf{a} = (4, 1)

and

\mathbf{b} = (1, 3)

it gives

27

, but

\mathbf{a} - \mathbf{b} = (3, -2)

has squared length

13 = 27 - 2(7)

.

Distributing

(\mathbf{a} - \mathbf{b}) \cdot (\mathbf{a} - \mathbf{b})

produces four dot products, just as multiplying out

(x - y)^2

produces four terms. Two of them are the squared lengths

\mathbf{a} \cdot \mathbf{a}

and

\mathbf{b} \cdot \mathbf{b}

, and the other two,

-\mathbf{a} \cdot \mathbf{b}

and

-\mathbf{b} \cdot \mathbf{a}

, merge into one by commutativity. That merged term is the only place where the two vectors meet, and it is the term the law of cosines matches with

-2\|\mathbf{a}\|\,\|\mathbf{b}\|\cos\theta

.

Where the cosine comes from

Draw a and b from the same point and join their tips: the third side is a − b, and the angle between a and b is θ. The law of cosines on that triangle, compared with the expansion of (a − b) · (a − b), is exactly the proof in this section. With a = (4, 1) and b = (1, 3), the components give a · b = 7, and the lengths and angle give √17 · √10 · cos 57.5° ≈ 7 — the same number.

The component formula is easy to compute; the geometric one says what the number means.

Definition	Formula	Most useful when
Algebraic	a · b = a₁b₁ + a₂b₂ + ⋯ + aₙbₙ	components are known and a numerical answer is wanted; works mechanically in any dimension
Geometric	a · b = ‖a‖ ‖b‖ cos θ	magnitudes and the angle are known; reveals what the dot product means (alignment) rather than how to compute it

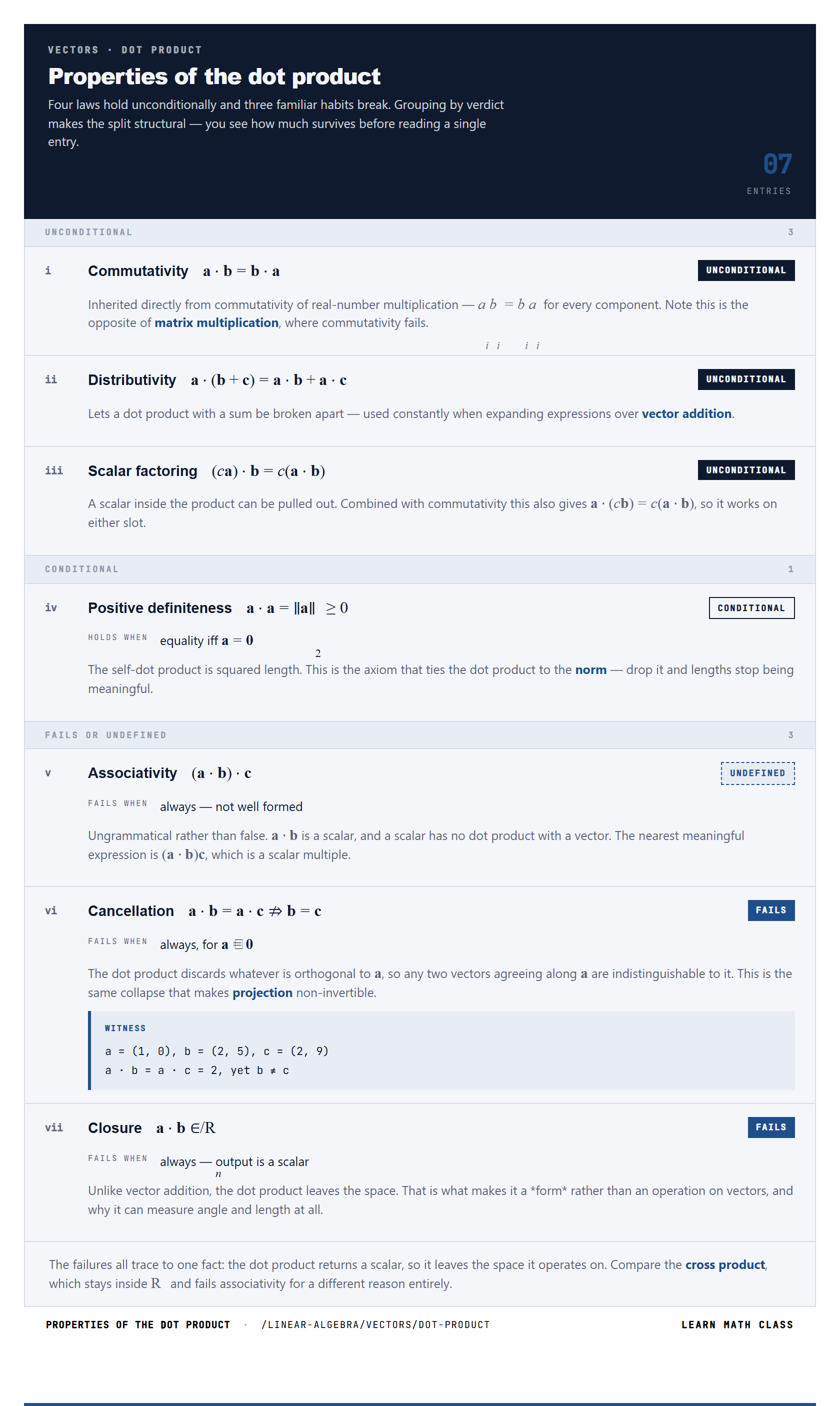

Properties of the Dot Product

The dot product obeys a set of algebraic rules that make it behave predictably in calculations.

Commutativity

Properties of the Dot Product

\mathbf{a} \cdot \mathbf{b} = \mathbf{b} \cdot \mathbf{a}

The order of the two vectors does not matter. This follows directly from commutativity of real number multiplication:

a_ib_i = b_ia_i

for every component.

Distributivity

Properties of the Dot Product

\mathbf{a} \cdot (\mathbf{b} + \mathbf{c}) = \mathbf{a} \cdot \mathbf{b} + \mathbf{a} \cdot \mathbf{c}

The dot product distributes over vector addition. This allows the dot product of a vector with a sum to be broken apart, a property used constantly when expanding expressions involving multiple vectors.

Scalar Factoring

Properties of the Dot Product

(c\mathbf{a}) \cdot \mathbf{b} = c(\mathbf{a} \cdot \mathbf{b})

A scalar multiplied into one of the vectors can be pulled out of the dot product entirely. Combined with commutativity, this also gives

\mathbf{a} \cdot (c\mathbf{b}) = c(\mathbf{a} \cdot \mathbf{b})

.

Positive Definiteness

Properties of the Dot Product

\mathbf{a} \cdot \mathbf{a} = \|\mathbf{a}\|^2 \geq 0, \quad \text{with equality if and only if } \mathbf{a} = \mathbf{0}

The dot product of a vector with itself is the sum of squared components — always non-negative, and zero only for the zero vector. This property ties the dot product directly to the norm and ensures that the geometric notion of length is consistent with the algebraic framework.

DownloadPNG2×PDF

Vectors · dot product

Properties of the dot product

Four laws hold unconditionally and three familiar habits break. Grouping by verdict makes the split structural — you see how much survives before reading a single entry.

07entries

Unconditional3

i

Commutativity

\mathbf{a} \cdot \mathbf{b} = \mathbf{b} \cdot \mathbf{a}

Inherited directly from commutativity of real-number multiplication — aibi = biai for every…

Unconditional

Inherited directly from commutativity of real-number multiplication — $a_ib_i = b_ia_i$ for every component. Note this is the opposite of matrix multiplication, where commutativity fails.

ii

Distributivity

\mathbf{a} \cdot (\mathbf{b} + \mathbf{c}) = \mathbf{a} \cdot \mathbf{b} + \mathbf{a} \cdot \mathbf{c}

Lets a dot product with a sum be broken apart — used constantly when expanding expressions over…

Unconditional

Lets a dot product with a sum be broken apart — used constantly when expanding expressions over vector addition.

iii

Scalar factoring

(c\mathbf{a}) \cdot \mathbf{b} = c(\mathbf{a} \cdot \mathbf{b})

A scalar inside the product can be pulled out.

Unconditional

A scalar inside the product can be pulled out. Combined with commutativity this also gives $\mathbf{a} \cdot (c\mathbf{b}) = c(\mathbf{a} \cdot \mathbf{b})$ , so it works on either slot.

Conditional1

iv

Positive definiteness

\mathbf{a} \cdot \mathbf{a} = \|\mathbf{a}\|^2 \geq 0

The self-dot product is squared length.

Conditional

Holds when: equality iff $\mathbf{a} = \mathbf{0}$

The self-dot product is squared length. This is the axiom that ties the dot product to the norm — drop it and lengths stop being meaningful.

Fails or undefined3

v

Associativity

(\mathbf{a} \cdot \mathbf{b}) \cdot \mathbf{c}

Ungrammatical rather than false.

Undefined

Fails when: always — not well formed

Ungrammatical rather than false. $\mathbf{a}\cdot\mathbf{b}$ is a scalar, and a scalar has no dot product with a vector. The nearest meaningful expression is $(\mathbf{a}\cdot\mathbf{b})\mathbf{c}$ , which is a scalar multiple.

vi

Cancellation

\mathbf{a}\cdot\mathbf{b} = \mathbf{a}\cdot\mathbf{c} \nRightarrow \mathbf{b} = \mathbf{c}

The dot product discards whatever is orthogonal to a, so any two vectors agreeing along a are…

Fails

Fails when: always, for $\mathbf{a} \neq \mathbf{0}$

The dot product discards whatever is orthogonal to $\mathbf{a}$ , so any two vectors agreeing along $\mathbf{a}$ are indistinguishable to it. This is the same collapse that makes projection non-invertible.

Witnessa = (1, 0), b = (2, 5), c = (2, 9)
a · b = a · c = 2, yet b ≠ c

vii

Closure

\mathbf{a} \cdot \mathbf{b} \notin \mathbb{R}^n

Unlike vector addition, the dot product leaves the space.

Fails

Fails when: always — output is a scalar

Unlike vector addition, the dot product leaves the space. That is what makes it a form rather than an operation on vectors, and why it can measure angle and length at all.

Unconditional

Conditional

Fails or undefined

CommutativityUnconditional

\mathbf{a} \cdot \mathbf{b} = \mathbf{b} \cdot \mathbf{a}

Inherited directly from commutativity of real-number multiplication —

a_ib_i = b_ia_i

for every component. Note this is the opposite of matrix multiplication, where commutativity fails.

DistributivityUnconditional

\mathbf{a} \cdot (\mathbf{b} + \mathbf{c}) = \mathbf{a} \cdot \mathbf{b} + \mathbf{a} \cdot \mathbf{c}

Lets a dot product with a sum be broken apart — used constantly when expanding expressions over vector addition.

Scalar factoringUnconditional

(c\mathbf{a}) \cdot \mathbf{b} = c(\mathbf{a} \cdot \mathbf{b})

A scalar inside the product can be pulled out. Combined with commutativity this also gives

\mathbf{a} \cdot (c\mathbf{b}) = c(\mathbf{a} \cdot \mathbf{b})

, so it works on either slot.

Positive definitenessConditional

\mathbf{a} \cdot \mathbf{a} = \|\mathbf{a}\|^2 \geq 0

Holds when: equality iff $\mathbf{a} = \mathbf{0}$

The self-dot product is squared length. This is the axiom that ties the dot product to the norm — drop it and lengths stop being meaningful.

AssociativityUndefined

(\mathbf{a} \cdot \mathbf{b}) \cdot \mathbf{c}

Fails when: always — not well formed

Ungrammatical rather than false.

\mathbf{a}\cdot\mathbf{b}

is a scalar, and a scalar has no dot product with a vector. The nearest meaningful expression is

(\mathbf{a}\cdot\mathbf{b})\mathbf{c}

, which is a scalar multiple.

CancellationFails

\mathbf{a}\cdot\mathbf{b} = \mathbf{a}\cdot\mathbf{c} \nRightarrow \mathbf{b} = \mathbf{c}

Fails when: always, for $\mathbf{a} \neq \mathbf{0}$

The dot product discards whatever is orthogonal to

\mathbf{a}

, so any two vectors agreeing along

\mathbf{a}

are indistinguishable to it. This is the same collapse that makes projection non-invertible.

Witnessa = (1, 0), b = (2, 5), c = (2, 9)
a · b = a · c = 2, yet b ≠ c

ClosureFails

\mathbf{a} \cdot \mathbf{b} \notin \mathbb{R}^n

Fails when: always — output is a scalar

Unlike vector addition, the dot product leaves the space. That is what makes it a form rather than an operation on vectors, and why it can measure angle and length at all.

The failures all trace to one fact: the dot product returns a scalar, so it leaves the space it operates on. Compare the cross product, which stays inside

\mathbb{R}^3

and fails associativity for a different reason entirely.

Properties of the dot product·/linear-algebra/vectors/dot-productLearn Math Class

Connection to Magnitude

Positive definiteness reveals that the norm is hiding inside the dot product. When a vector is dotted with itself, the result is exactly the quantity that sits under the square root in the norm formula:

Dot Product Magnitude Relation

\mathbf{v} \cdot \mathbf{v} = \|\mathbf{v}\|^2

Learn more about this formula: Dot Product Magnitude Relation →

Browse all linear algebra formulas →

Written out in components, this reads

\mathbf{v} \cdot \mathbf{v} = v_1^2 + v_2^2 + \cdots + v_n^2

— a sum of squares. Squared length, in other words, is not a separate concept — it is a dot product in which both slots are filled by the same vector. Flipping this around gives an alternative expression for the norm:

\|\mathbf{v}\| = \sqrt{\mathbf{v} \cdot \mathbf{v}}

. Rather than defining magnitude independently and then discovering a coincidence, we can view the norm as something the dot product generates.

This observation has practical consequences. Several norm properties that would otherwise demand their own proofs fall out as corollaries of dot product rules. Scalar factoring implies

\|c\mathbf{v}\| = |c|\,\|\mathbf{v}\|

with no extra work. The triangle inequality

\|\mathbf{a} + \mathbf{b}\| \leq \|\mathbf{a}\| + \|\mathbf{b}\|

follows once we control the size of

\mathbf{a} \cdot \mathbf{b}

through Cauchy–Schwarz — again, a statement framed entirely in dot product language.

The dependence runs both ways. The geometric formula

\mathbf{a} \cdot \mathbf{b} = \|\mathbf{a}\|\,\|\mathbf{b}\|\cos\theta

rebuilds the dot product from two norms and an angle. Neither concept stands alone: the dot product encodes magnitude, and magnitude participates in the dot product's geometric interpretation. Separating them into unrelated topics conceals the single algebraic mechanism they both rely on.

Length is not a separate idea: it is the dot product of a vector with itself, under a square root.

The Angle Between Vectors

Rearranging the geometric formula isolates the angle:

Angle Between Vectors

\cos\theta = \frac{\mathbf{a} \cdot \mathbf{b}}{\|\mathbf{a}\|\,\|\mathbf{b}\|}

Learn more about this formula: Angle Between Vectors →

Browse all linear algebra formulas →

Pitfall: Dividing by the squared lengths

For

\mathbf{a} = (4, 1)

and

\mathbf{b} = (1, 3)

, using

17

and

10

in the denominator gives

\cos\theta = \frac{7}{170} \approx 0.041

, so

\theta \approx 87.6^\circ

. The norms are

\sqrt{17}

and

\sqrt{10}

:

\cos\theta = \frac{7}{\sqrt{170}} \approx 0.537

and

\theta \approx 57.5^\circ

.

This formula is defined only when both vectors are nonzero, since division by zero is undefined. The angle

\theta

lies in the interval

[0, \pi]

, covering all possibilities from vectors pointing in the same direction (

\theta = 0

) to vectors pointing in exactly opposite directions (

\theta = \pi

).

The right-hand side is the dot product of the two normalized vectors

\hat{\mathbf{a}} \cdot \hat{\mathbf{b}}

. Normalization strips away the magnitudes, leaving only the directional relationship.

COROLLARY

The cosine of the angle between two vectors depends solely on their directions, not on how long they are.

Fact: Methane's bond angle is a dot product

In methane the four hydrogens sit at alternate corners of a cube around the carbon, along

(1, 1, 1)

and

(1, -1, -1)

for example. The dot product is

-1

and each length is

\sqrt{3}

, so

\cos\theta = -\frac{1}{3}

and

\theta \approx 109.5^\circ

, the bond angle of chemistry books.

In

\mathbb{R}^2

and

\mathbb{R}^3

, this formula can be verified against the angle measured with a protractor. In higher dimensions, where geometric angles cannot be visualized, the formula serves as the definition of the angle between two vectors — extending a geometric concept into spaces where geometry alone cannot reach.

Even in

\mathbb{R}^3

the formula often does better than a protractor. Take a cube centred at the origin with corners at

(\pm 1, \pm 1, \pm 1)

, and draw arrows from the centre to two corners that share no edge, such as

(1, 1, 1)

and

(1, -1, -1)

. Measuring the angle between them on a model is awkward; the formula needs only one dot product and two lengths.

Sign of the Dot Product

The sign of the dot product reveals the angular relationship between two vectors without requiring the angle itself to be computed. Since

\|\mathbf{a}\|

and

\|\mathbf{b}\|

are both positive for nonzero vectors, the sign of

\mathbf{a} \cdot \mathbf{b}

is determined entirely by

\cos\theta

.

When

\mathbf{a} \cdot \mathbf{b} > 0

, the cosine is positive, which means

\theta

lies in the interval

[0, \frac{\pi}{2})

. The vectors form an acute (or zero) angle — they point in broadly the same direction.

When

\mathbf{a} \cdot \mathbf{b} = 0

, the cosine is zero, placing

\theta

at exactly

\frac{\pi}{2}

. The vectors are perpendicular — neither has any component in the direction of the other.

When

\mathbf{a} \cdot \mathbf{b} < 0

, the cosine is negative, so

\theta

lies in

(\frac{\pi}{2}, \pi]

. The vectors form an obtuse (or straight) angle — they point in broadly opposite directions.

This three-way classification is a fast diagnostic tool. Checking whether a dot product is positive, zero, or negative is often all that is needed to determine the geometric relationship between two vectors — no square roots, no inverse cosines, just the sign of a sum of products.

Positive, zero, negative

Keep a = (3, 0) fixed and turn b. At 45° the dot product is 6 — positive, the vectors lean the same way. At 90° it is exactly 0 — perpendicular, neither has any component along the other. At 135° it is −6 — negative, they lean apart. The lengths stay positive throughout, so the sign of a · b is the sign of cos θ.

Reading only the sign is often enough: no square roots and no inverse cosine are needed to tell acute from obtuse.

Sign of a · b	Cosine	Angle θ	Geometric meaning
Positive (> 0)	cos θ > 0	θ ∈ [0, π/2)	acute (or zero) angle — vectors point in broadly the same direction
Zero (= 0)	cos θ = 0	θ = π/2	orthogonal — neither vector has a component along the other
Negative (< 0)	cos θ < 0	θ ∈ (π/2, π]	obtuse (or straight) angle — vectors point in broadly opposite directions

Orthogonality

Two vectors are orthogonal when their dot product is zero:

Orthogonality Test

\mathbf{a} \cdot \mathbf{b} = 0 \iff \mathbf{a} \perp \mathbf{b}

Learn more about this formula: Orthogonality Test →

Browse all linear algebra formulas →

Fact: Random arrows are almost perpendicular

Fill two vectors in

\mathbb{R}^{10000}

with random entries

\pm 1

: more than 99.9% of the time they meet at between

88^\circ

and

92^\circ

. The 10,000 products

\pm 1

mostly cancel, leaving a dot product typically about

80

in size (its standard deviation is

100

), while the two lengths multiply to

10000

.

In

\mathbb{R}^2

and

\mathbb{R}^3

, orthogonality corresponds to perpendicularity — the vectors meet at a right angle. In

\mathbb{R}^n

for

n > 3

, perpendicularity cannot be visualized, but the algebraic condition

\mathbf{a} \cdot \mathbf{b} = 0

still serves as its definition. Orthogonality is the generalization of "right angle" to any number of dimensions.

The zero vector occupies a special position:

\mathbf{0} \cdot \mathbf{v} = 0

for every vector

\mathbf{v}

, so the zero vector is orthogonal to everything. This is a convention that simplifies many statements — without it, theorems about orthogonal sets would need to exclude the zero vector as a separate case.

Orthogonality is far more than a geometric curiosity. Nonzero orthogonal vectors are linearly independent — projecting one onto the other yields zero, meaning neither contributes anything in the direction of the other. This idea scales up: orthogonal bases, orthogonal decompositions, and orthogonal complements form a central thread through the orthogonality section of linear algebra.

The Cauchy–Schwarz Inequality

The dot product of two vectors cannot grow arbitrarily large when their lengths are fixed. Cauchy–Schwarz makes this constraint precise:

Cauchy-Schwarz Inequality

|\mathbf{a} \cdot \mathbf{b}| \leq \|\mathbf{a}\|\,\|\mathbf{b}\|

Learn more about this formula: Cauchy-Schwarz Inequality →

Browse all linear algebra formulas →

The geometric angle formula offers the most transparent explanation. Writing

\mathbf{a} \cdot \mathbf{b} = \|\mathbf{a}\|\,\|\mathbf{b}\|\cos\theta

and noting that

|\cos\theta|

never surpasses

1

, the absolute dot product is automatically bounded by the product of the norms. This ceiling is reached only when

\cos\theta

hits

\pm 1

— at

\theta = 0

or

\theta = \pi

— so equality corresponds to parallel vectors pointing along or against each other.

An entirely coordinate-based proof exists as well, requiring no notion of angle. Consider the expression

\|\mathbf{a} - t\mathbf{b}\|^2

for a variable scalar

t

. Because a squared norm is never negative, this expression defines a quadratic in

t

with no negative values. A real quadratic that stays non-negative must have a non-positive discriminant, and writing out that discriminant condition yields exactly the Cauchy–Schwarz bound. This argument extends to any setting where an inner product is defined, even when angles lack geometric substance.

The inequality plays a structural role beyond bounding computations. Without it, the angle formula would be ill-posed: feeding

\frac{\mathbf{a} \cdot \mathbf{b}}{\|\mathbf{a}\|\,\|\mathbf{b}\|}

into

\arccos

requires the fraction to land in

[-1, 1]

, and Cauchy–Schwarz is what guarantees this. The norm's triangle inequality likewise depends on it — establishing

\|\mathbf{a} + \mathbf{b}\| \leq \|\mathbf{a}\| + \|\mathbf{b}\|

involves controlling the mixed term

\mathbf{a} \cdot \mathbf{b}

, which is exactly the job Cauchy–Schwarz performs.

Cauchy–Schwarz is what lets the dot product define angles and keeps lengths obeying the triangle inequality, in any dimension.

Orthogonal Projection

It is frequently necessary to break a vector

\mathbf{a}

into two pieces relative to a nonzero vector

\mathbf{b}

: one piece aligned with

\mathbf{b}

and another at a right angle to it. The dot product supplies the machinery for this decomposition.

Scalar Projection

The signed distance that

\mathbf{a}

covers in the direction of

\mathbf{b}

is captured by a single number:

Scalar Projection

\text{comp}_{\mathbf{b}}\,\mathbf{a} = \frac{\mathbf{a} \cdot \mathbf{b}}{\|\mathbf{b}\|}

Learn more about this formula: Scalar Projection →

Browse all linear algebra formulas →

When this quantity comes out positive,

\mathbf{a}

tilts toward

\mathbf{b}

. A negative result means

\mathbf{a}

tilts away. Zero signals complete orthogonality —

\mathbf{a}

contributes nothing at all in the direction of

\mathbf{b}

.

Vector Projection

To obtain an actual vector rather than a bare number, the scalar projection is re-embedded along

\mathbf{b}

:

Vector Projection

\text{proj}_{\mathbf{b}}\,\mathbf{a} = \frac{\mathbf{a} \cdot \mathbf{b}}{\|\mathbf{b}\|^2}\,\mathbf{b}

Learn more about this formula: Vector Projection →

Browse all linear algebra formulas →

Pitfall: Dividing by the length instead of its square

Projecting

\mathbf{a} = (4, 2)

onto

\mathbf{b} = (1, 1)

with

\|\mathbf{b}\| = \sqrt{2}

in the denominator gives

\frac{6}{\sqrt{2}}(1, 1) \approx (4.24, 4.24)

, of length

6

, longer than

\mathbf{a}

itself. With

\|\mathbf{b}\|^2 = 2

, the projection is

3(1, 1) = (3, 3)

.

Equivalently, the denominator can be written

\mathbf{b} \cdot \mathbf{b}

. The coefficient

\frac{\mathbf{a} \cdot \mathbf{b}}{\mathbf{b} \cdot \mathbf{b}}

rescales

\mathbf{b}

so that the output has the appropriate length and orientation. What results is a vector parallel to

\mathbf{b}

whose norm equals

|\text{comp}_{\mathbf{b}}\,\mathbf{a}|

.

Orthogonal Decomposition

Removing the projected component from

\mathbf{a}

leaves behind the perpendicular part:

Orthogonal Decomposition

\mathbf{a}_{\perp} = \mathbf{a} - \text{proj}_{\mathbf{b}}\,\mathbf{a}

Learn more about this formula: Orthogonal Decomposition →

Browse all linear algebra formulas →

Together, the two pieces reconstruct the original:

Orthogonal Projection

\mathbf{a} = \text{proj}_{\mathbf{b}}\,\mathbf{a} + \mathbf{a}_{\perp}

The parallel component lies along

\mathbf{b}

; the perpendicular component satisfies

\mathbf{a}_{\perp} \cdot \mathbf{b} = 0

, a fact that follows by substituting the formula and simplifying. These two constituents are geometrically independent — adjusting one leaves the other unchanged, and each accounts for information the other entirely misses.

This two-part split reappears in more sophisticated forms throughout linear algebra. Projection onto a line generalizes to projection onto multi-dimensional subspaces. The Gram–Schmidt procedure repeats the same splitting step iteratively, peeling off parallel components one vector at a time to produce an orthogonal collection. Least-squares fitting identifies the closest approximation inside a subspace by projecting onto it. Each of these techniques, covered in the orthogonality section, traces back to the same principle at work here: partition a vector into what runs along a chosen direction and what runs across it.

Quantity	Formula	What it represents
Scalar projection comp_b a	(a · b) / ‖b‖	signed length of a's shadow on b; positive when a tilts toward b, negative when away
Vector projection proj_b a	((a · b) / (b · b)) b = ((a · b) / ‖b‖²) b	the shadow as an actual vector, parallel to b, with length equal to \|comp_b a\|
Perpendicular component a_⊥	a − proj_b a	the part of a orthogonal to b; satisfies a_⊥ · b = 0

The coefficient applied to the direction vector

The scalar computed from the two dot products is being multiplied back onto the direction vector, which is what turns a bare ratio into an actual vector lying along it. The projection is always a multiple of the vector projected onto, never of the one being projected — the picture makes the asymmetry hard to miss. Watch the remainder appear as well on the vector projection visualizer.

Splitting a vector into a part along another and a part perpendicular to it is the move that least squares and Gram–Schmidt both rest on.

Summary: Every Use of the Dot Product

Across the sections above, the dot product appears in seven distinct roles — measuring length, computing angles, testing orthogonality, classifying the angular relationship by sign, bounding products of vectors, and producing two kinds of projection. The table below collects all of these in a single reference, organized around the question each role answers and the formula that does the work. Every entry below is built from the same operation a · b = Σ a_ib_i — the geometric variety on the page comes from how that one number is interpreted and combined with the norm.

Question	Use of the dot product	Result
What is the length of v?	√(v · v)	the norm ‖v‖
What angle do a and b make?	cos θ = (a · b) / (‖a‖ ‖b‖), then arccos	an angle θ in [0, π]
Are a and b orthogonal?	check whether a · b = 0	yes / no
Is the angle acute, right, or obtuse?	read off the sign of a · b	positive / zero / negative → acute / right / obtuse
How big can a · b be given the lengths?	\|a · b\| ≤ ‖a‖ ‖b‖ (Cauchy–Schwarz)	a bound; equality only for parallel vectors
What is the signed length of a's shadow on b?	(a · b) / ‖b‖	scalar projection comp_b a
What is a's shadow on b as a vector?	((a · b) / ‖b‖²) b	vector projection proj_b a, parallel to b

Common Pitfalls

Five mistakes come up again and again in dot product work. Four of them are marked where they happen in the sections above; the fifth is the cancellation law that the properties card lists as failing. Here each is worked through in full, with the wrong and the right working side by side.

Leaving the products as a vector

The components are multiplied in pairs, and the list of products is given as the answer, the way vector addition gives a list of sums. The second half of the definition, adding the products, never happens.

Wrong working:

(3, 4) \cdot (1, -2) = (3 \cdot 1,\ 4 \cdot (-2)) = (3, -8)

Right working: the products are added.

(3, 4) \cdot (1, -2) = 3(1) + 4(-2) = 3 - 8 = -5

Why it happens: vector addition and scalar multiplication both work component by component and return a vector, and the first step of the dot product looks exactly the same.

How to check: the result of a dot product is one number. An answer that still has components is missing the sum.

Dropping the middle term

A squared length of a difference or a sum is expanded as if the square could be taken term by term, and the cross term

-2(\mathbf{a} \cdot \mathbf{b})

disappears.

Wrong working, for

\mathbf{a} = (4, 1)

and

\mathbf{b} = (1, 3)

:

\|\mathbf{a} - \mathbf{b}\|^2 = \|\mathbf{a}\|^2 + \|\mathbf{b}\|^2 = 17 + 10 = 27

Right working: expand the dot product with distributivity and merge the two middle terms by commutativity.

(\mathbf{a} - \mathbf{b}) \cdot (\mathbf{a} - \mathbf{b}) = \|\mathbf{a}\|^2 - 2(\mathbf{a} \cdot \mathbf{b}) + \|\mathbf{b}\|^2 = 17 - 2(7) + 10 = 13

Why it happens: the square on

\|\mathbf{a} - \mathbf{b}\|^2

looks like the square of a number, and the same slip as

(x - y)^2 = x^2 - y^2

carries over to vectors.

How to check: compute the difference first.

\mathbf{a} - \mathbf{b} = (3, -2)

, and

3^2 + (-2)^2 = 13

. The term-by-term version is right only when

\mathbf{a} \cdot \mathbf{b} = 0

, which is the Pythagorean theorem.

Cancelling a vector from both sides

From

\mathbf{a} \cdot \mathbf{b} = \mathbf{a} \cdot \mathbf{c}

with

\mathbf{a} \neq \mathbf{0}

, the vector

\mathbf{a}

is divided out to conclude

\mathbf{b} = \mathbf{c}

, as with numbers.

Wrong working, with the vectors from the properties card:

\mathbf{a} = (1, 0),\ \mathbf{b} = (2, 5),\ \mathbf{c} = (2, 9): \quad \mathbf{a} \cdot \mathbf{b} = 2 = \mathbf{a} \cdot \mathbf{c} \implies \mathbf{b} = \mathbf{c}

But

\mathbf{b} \neq \mathbf{c}

.

Right working: move everything to one side and use distributivity.

\mathbf{a} \cdot \mathbf{b} - \mathbf{a} \cdot \mathbf{c} = \mathbf{a} \cdot (\mathbf{b} - \mathbf{c}) = 0

The equation only says that

\mathbf{b} - \mathbf{c}

is orthogonal to

\mathbf{a}

. Here

\mathbf{b} - \mathbf{c} = (0, -4)

, and

(1, 0) \cdot (0, -4) = 0

.

Why it happens: for numbers,

ab = ac

with

a \neq 0

does give

b = c

. The dot product has no inverse to divide by, because it only sees the part of

\mathbf{b}

that lies along

\mathbf{a}

.

How to check: compute

\mathbf{b} - \mathbf{c}

and dot it with

\mathbf{a}

. A result of

0

with

\mathbf{b} - \mathbf{c} \neq \mathbf{0}

shows that

\mathbf{b}

and

\mathbf{c}

can differ.

Dividing by the squared lengths

In the angle formula, the denominator is filled with

\mathbf{a} \cdot \mathbf{a}

and

\mathbf{b} \cdot \mathbf{b}

, which are the squared lengths, instead of the lengths themselves.

Wrong working, for

\mathbf{a} = (4, 1)

and

\mathbf{b} = (1, 3)

with

\mathbf{a} \cdot \mathbf{b} = 7

:

\cos\theta = \frac{7}{17 \cdot 10} = \frac{7}{170} \approx 0.041, \quad \theta \approx 87.6^\circ

Right working:

\|\mathbf{a}\| = \sqrt{17}

and

\|\mathbf{b}\| = \sqrt{10}

.

\cos\theta = \frac{7}{\sqrt{17}\,\sqrt{10}} = \frac{7}{\sqrt{170}} \approx 0.537, \quad \theta \approx 57.5^\circ

Why it happens: the values

17

and

10

come out of the same kind of sum of products as

\mathbf{a} \cdot \mathbf{b}

, and the square root that turns them into lengths is easy to leave out.

How to check: the angle must not change when a vector is stretched. Doubling

\mathbf{a}

to

(8, 2)

gives

\frac{14}{68 \cdot 10} \approx 0.021

with the squared lengths, a different angle, while the correct formula gives

\frac{14}{\sqrt{680}} \approx 0.537

again.

Dividing by the length instead of its square

The vector projection is written with

\|\mathbf{b}\|

in the denominator, copied from the scalar projection, instead of

\|\mathbf{b}\|^2

.

Wrong working, for

\mathbf{a} = (4, 2)

and

\mathbf{b} = (1, 1)

with

\mathbf{a} \cdot \mathbf{b} = 6

:

\frac{\mathbf{a} \cdot \mathbf{b}}{\|\mathbf{b}\|}\,\mathbf{b} = \frac{6}{\sqrt{2}}(1, 1) \approx (4.24, 4.24)

Right working:

\|\mathbf{b}\|^2 = \mathbf{b} \cdot \mathbf{b} = 2

.

\text{proj}_{\mathbf{b}}\,\mathbf{a} = \frac{6}{2}(1, 1) = (3, 3)

Why it happens: the scalar projection divides by

\|\mathbf{b}\|

once, and the vector projection looks like the same fraction placed in front of

\mathbf{b}

. But

\mathbf{b}

is not a unit vector, so a second division by

\|\mathbf{b}\|

is needed to turn it into one.

How to check: a projection is never longer than the vector projected. The wrong answer has length

6

, more than

\|\mathbf{a}\| = \sqrt{20} \approx 4.47

. Also,

\mathbf{a}

minus its projection must be orthogonal to

\mathbf{b}

:

(4, 2) - (3, 3) = (1, -1)

, and

(1, -1) \cdot (1, 1) = 0

.

Dot Product FAQ

Can you write $\mathbf{a}\mathbf{b}$ without the dot?

+

No. Between two vectors the dot is the operation itself, so juxtaposition means nothing at all. That differs from scalars, where

ab

and

a \cdot b

agree, and from scalar multiplication

c \cdot \mathbf{v}

, where the dot is decoration. Only between two vectors does the mark carry the operation.Read more →

In $\mathbf{a}^{T}\mathbf{b}$ , is the $T$ an exponent?

+

No, it is a label meaning transpose, so nothing is raised to a power. The expression is the dot product written in matrix clothing: a

1 \times n

row times an

n \times 1

column gives a single number. Reversing it to

\mathbf{a}\mathbf{b}^{T}

produces something else entirely, an

n \times n

outer product.Read more →

Why does the Cauchy–Schwarz inequality mix single and double bars?

+

Because the two sides measure different species. On the left,

\mathbf{a} \cdot \mathbf{b}

has already collapsed to a scalar, so it takes ordinary absolute value bars. On the right sit two vectors, which need norm bars. Writing

\|\mathbf{a} \cdot \mathbf{b}\|

is an error: there is no vector left to measure.Read more →

If $\mathbf{a} \cdot \mathbf{b} = \mathbf{a} \cdot \mathbf{c}$ , does $\mathbf{b} = \mathbf{c}$ ?

+

No, not even when

\mathbf{a} \neq \mathbf{0}

. Moving everything to one side gives

\mathbf{a} \cdot (\mathbf{b} - \mathbf{c}) = 0

, which only says that

\mathbf{b} - \mathbf{c}

is orthogonal to

\mathbf{a}

. With

\mathbf{a} = (1, 0)

,

\mathbf{b} = (2, 5)

and

\mathbf{c} = (2, 9)

, both dot products equal

2

, yet

\mathbf{b} \neq \mathbf{c}

. The dot product sees only the part of a vector that lies along

\mathbf{a}

, so there is nothing to divide by.Read more →

Is the dot product associative?

+

No, and the question cannot even be posed:

(\mathbf{a} \cdot \mathbf{b}) \cdot \mathbf{c}

is not well formed. The first product

\mathbf{a} \cdot \mathbf{b}

is already a scalar, and a scalar has no dot product with a vector. The nearest meaningful expression is

(\mathbf{a} \cdot \mathbf{b})\mathbf{c}

, a scalar multiple of

\mathbf{c}

, and in general it differs from

\mathbf{a}(\mathbf{b} \cdot \mathbf{c})

, which points along

\mathbf{a}

.Read more →

Is $\|\mathbf{a} - \mathbf{b}\|^2$ equal to $\|\mathbf{a}\|^2 + \|\mathbf{b}\|^2$ ?

+

Only when

\mathbf{a} \cdot \mathbf{b} = 0

, which is the Pythagorean theorem. In general, expanding

(\mathbf{a} - \mathbf{b}) \cdot (\mathbf{a} - \mathbf{b})

leaves a middle term:

\|\mathbf{a} - \mathbf{b}\|^2 = \|\mathbf{a}\|^2 - 2(\mathbf{a} \cdot \mathbf{b}) + \|\mathbf{b}\|^2

. For

\mathbf{a} = (4, 1)

and

\mathbf{b} = (1, 3)

the shortcut gives

17 + 10 = 27

, but

\mathbf{a} - \mathbf{b} = (3, -2)

has squared length

13 = 27 - 2(7)

.Read more →

Why are random vectors in high dimensions almost perpendicular?

+

Because their dot product grows far more slowly than their lengths. Fill two vectors in

\mathbb{R}^{10000}

with random entries

\pm 1

: the

10000

products

\pm 1

mostly cancel, leaving a dot product typically about

80

in size (its standard deviation is

100

), while the two lengths multiply to

10000

. So

\cos\theta

sits near

0.01

, and more than 99.9% of such pairs meet at between

88^\circ

and

92^\circ

.Read more →

Dot Product

The Product That Reveals Angles

Algebraic Definition

Two vectors, one number

Dot Product Notation

Dot Product Notation

Geometric Definition

Properties of the Dot Product

Commutativity

Distributivity

Scalar Factoring

Positive Definiteness

Properties of the dot product

Connection to Magnitude

The Angle Between Vectors

Sign of the Dot Product

Orthogonality

The Cauchy–Schwarz Inequality

Orthogonal Projection

Scalar Projection

Vector Projection

Orthogonal Decomposition

Summary: Every Use of the Dot Product

Common Pitfalls

Dot Product FAQ

Can you write ab\mathbf{a}\mathbf{b}ab without the dot?

In aTb\mathbf{a}^{T}\mathbf{b}aTb, is the TTT an exponent?

Why does the Cauchy–Schwarz inequality mix single and double bars?

If a⋅b=a⋅c\mathbf{a} \cdot \mathbf{b} = \mathbf{a} \cdot \mathbf{c}a⋅b=a⋅c, does b=c\mathbf{b} = \mathbf{c}b=c?

Is the dot product associative?

Is ∥a−b∥2\|\mathbf{a} - \mathbf{b}\|^2∥a−b∥2 equal to ∥a∥2+∥b∥2\|\mathbf{a}\|^2 + \|\mathbf{b}\|^2∥a∥2+∥b∥2?

Why are random vectors in high dimensions almost perpendicular?

Can you write $\mathbf{a}\mathbf{b}$ without the dot?

In $\mathbf{a}^{T}\mathbf{b}$ , is the $T$ an exponent?

If $\mathbf{a} \cdot \mathbf{b} = \mathbf{a} \cdot \mathbf{c}$ , does $\mathbf{b} = \mathbf{c}$ ?

Is $\|\mathbf{a} - \mathbf{b}\|^2$ equal to $\|\mathbf{a}\|^2 + \|\mathbf{b}\|^2$ ?
